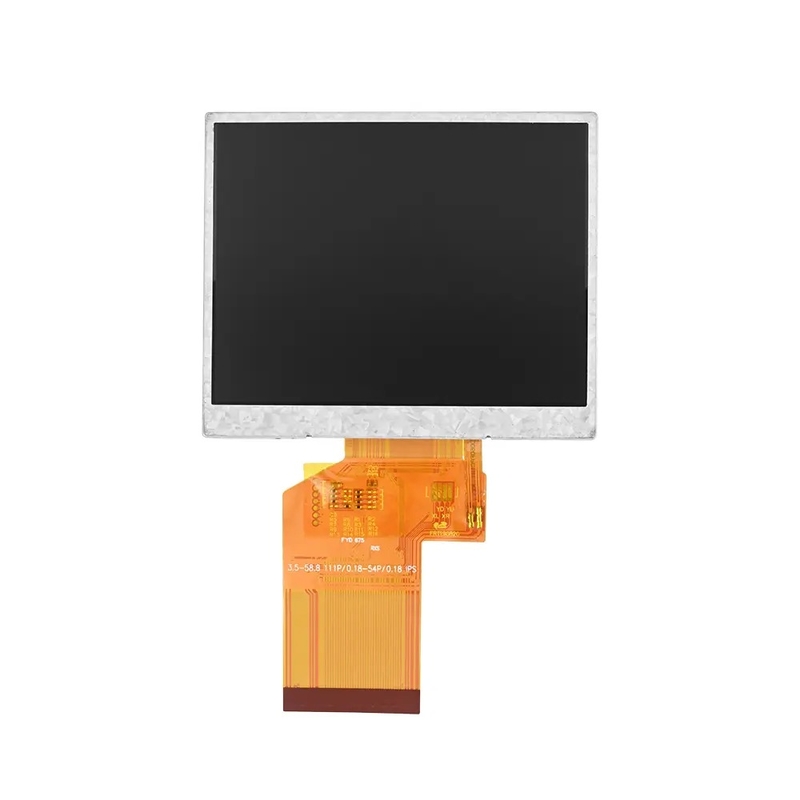

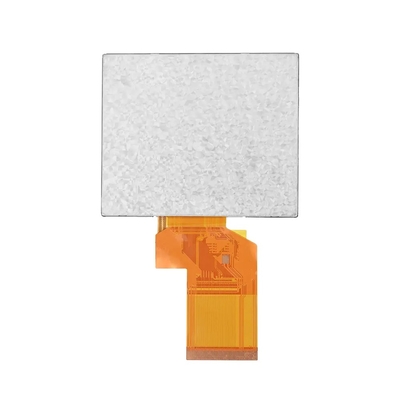

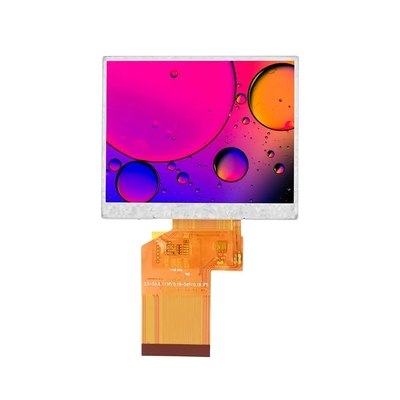

Innolux 3.4 Inch TFT LCD Module 320x240 Resolution 50pin FPC
Productdetails:
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 500 |
|---|---|
| Prijs: | 12 |
|
Gedetailleerde informatie |
|||
| Model nr.: | RY015 | Beeldverhouding: | 4: 3 |
|---|---|---|---|
| Optimale resolutie: | 320*240 | Type: | Tft |
| Reactietijd: | 25ms | Interfacetype: | RGB |
| Oplossing: | 800X3 ((RGB) X480 | Modulegrootte: | 126,5 x 100,0 x 5,7 mm |
| Actief gebied: | 112.896 x 84.672 mm | kijkhoek: | 50/70/70/70 |
| Interface: | 50Pin FPC, Parallel 24bit RGB | Schermgrootte: | 3.4 inch |
| Schuilplaats: | 200 neten | Contrastverhouding: | 500 |
| Gewicht: | 127,5 g | ||
| Markeren: | 3.4 inch TFT LCD module,320x240 resolution LCD display,50pin FPC TFT module |
||
Productomschrijving
| Model NO. | RY015 |
| Aspect ratio | 4:3 |
| Feature | LED Backlight Display |
| Optimum Resolution | 320*240 |
| Type | TFT |
| Interface Type | RGB |
| Module Size (mm) | 126.5 X 100.0 X 5.7 |
| Active Area (mm) | 112.896 X 84.672 |
| Viewing Angle | 50/70/70/70 |
| Interface | 50pin FPC, Parallel 24bit RGB |
| Specification | 3.4 Inch |
| Production Capacity | 300K/M |
Innolux's global workforce exceeds 60,000 employees with production sites and sales locations worldwide. Major TFT plants are located in Zhunan and Tainan, Taiwan, with additional module plants in Ningbo, Nanjing, Foshan, and Shanghai, China.
| Model Name | AT056TN52 V.3 |
| Product type | LCD Module |
| Screen Size | 3.4" |
| Resolution | 800X3(RGB)X480 |
| Luminance (nits) | 200 |
| Contrast Ratio | 500 |
| Response Time (ms) | 25 |
| Weight (g) | 127.5 |
| Operation Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |
With over 10 years of specialization in LCD products including LCD Displays, Modules, and LED backlight displays, we serve industries such as medical, industrial equipment, testing devices, and electronic meters.
90% of our products are custom-designed, with a monthly production capacity of 300K units. All products meet international quality standards including CE, FCC & RoHS.
- Quality Control: Each LCD tested with specialized instruments before delivery
- Packing: Anti-static bags with foam box for safe transportation
- Shipping: Prompt delivery via UPS, EMS, DHL, TNT, or air freight
- Service: Comprehensive after-sales support
- Warranty: Standard 1-year product warranty
- Samples: Available for quality testing (sample and freight charges apply)
